README.md

MaUWB ESP32-S3 Positioning System

Ultra-wideband (UWB) positioning system using ESP32-S3 and Makerfabs UWB modules for indoor positioning and warehouse mapping applications.

Features

ESP32-S3 based anchor and tag devices
Real-time distance measurement with <10cm accuracy

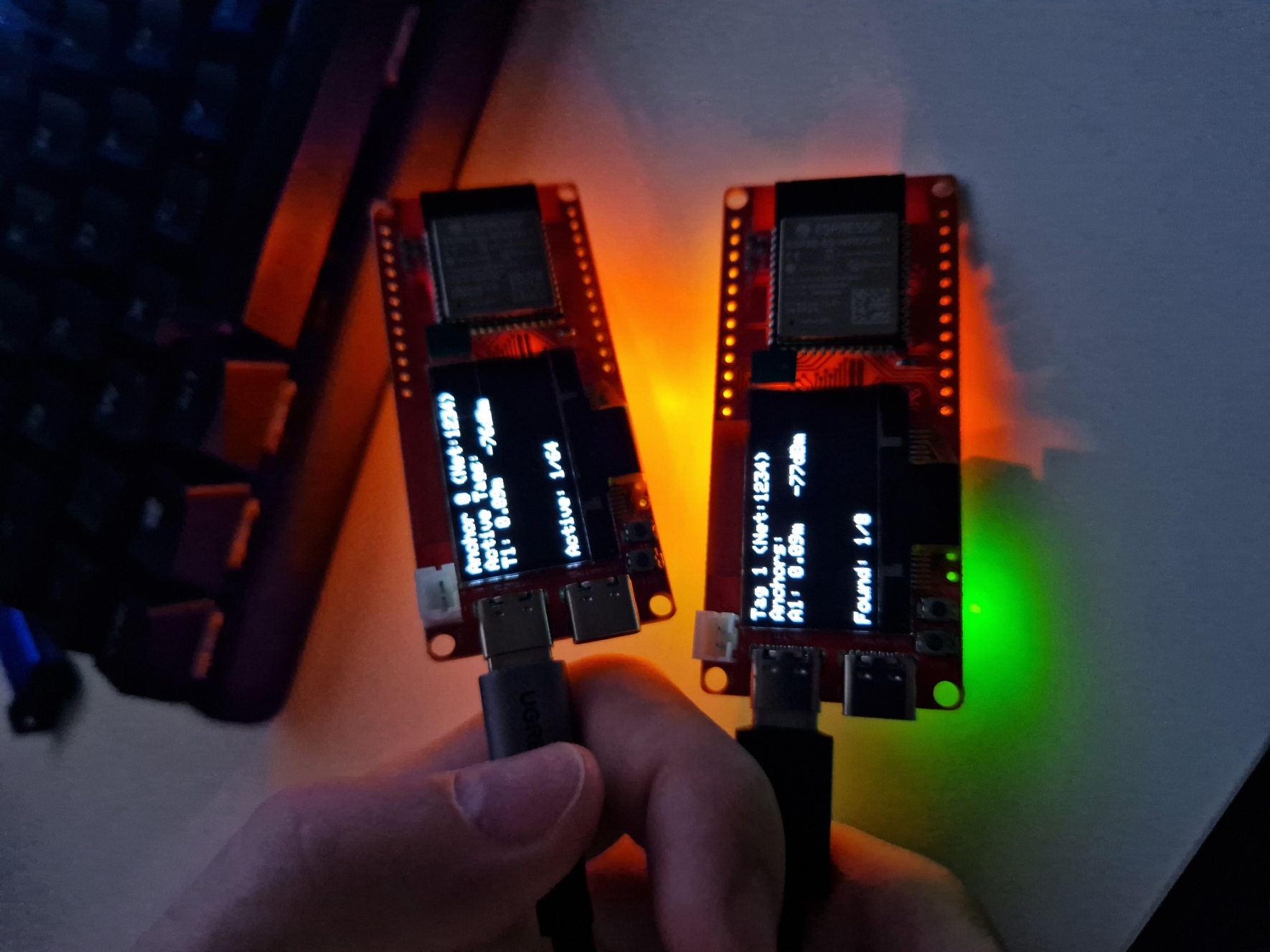

OLED display for status and measurements
Multiple tag support (up to 64 tags)
6.8Mbps communication rate
Complete AT command implementation
Position calculation with trilateration
Anchor auto-positioning system
Real-time positioning with USB data logging

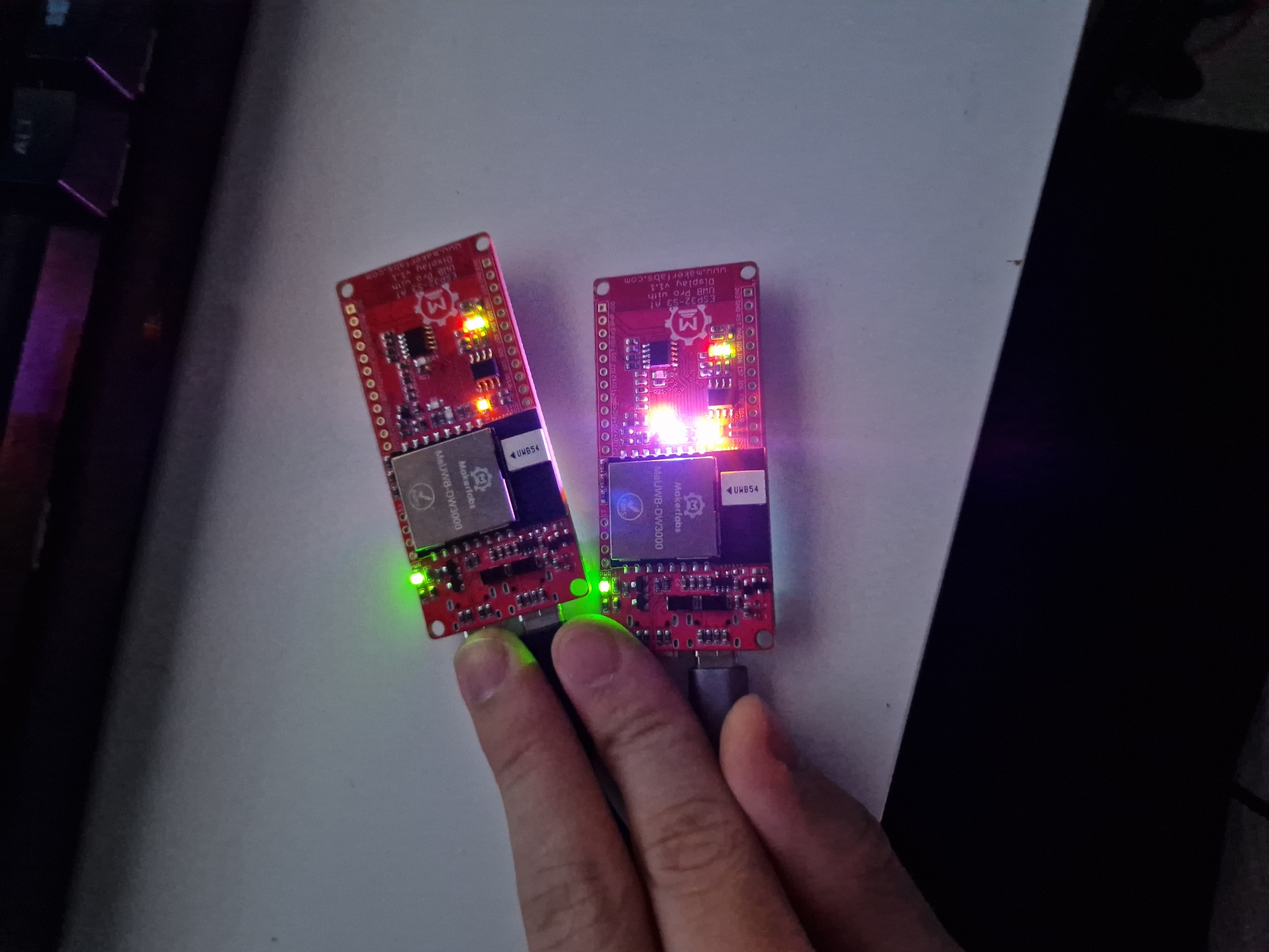

Hardware: Makerfabs MaUWB ESP32-S3 UWB Module with SSD1306 OLED displays

Environments

anchor: Base station for positioning
tag: Mobile device for tracking (ID 1)
tag2: Mobile device for tracking (ID 2)

Build & Upload

# Build specific environment
pio run -e anchor
pio run -e tag

# Upload to device
pio run -e tag -t upload

# Monitor serial output
pio device monitor

AT Command Support

Complete implementation of all AT commands from the official manual:

Basic Commands

AT? - Test connection
AT+GETVER? - Get firmware version
AT+RESTART - Restart module
AT+RESTORE - Factory reset
AT+SAVE - Save configuration

Configuration

AT+SETCFG / AT+GETCFG? - Device configuration
AT+SETANT / AT+GETANT? - Antenna delay calibration
AT+SETCAP / AT+GETCAP? - System capacity settings
AT+SETRPT / AT+GETRPT? - Auto-reporting control

Network & Power

AT+SETPAN / AT+GETPAN? - Network ID configuration
AT+SETPOW / AT+GETPOW? - Transmission power control
AT+SLEEP - Sleep mode for battery conservation

Data Communication

AT+DATA / AT+RDATA - Custom data transmission
Real-time range reporting via AT+RANGE parsing

Library Features

The enhanced UWBHelper library provides:

Complete AT command coverage
Advanced range data parsing for multiple anchors
Position calculation algorithms (trilateration, multilateration)
Anchor position management for auto-positioning
Distance filtering for improved accuracy
Backward compatibility with existing code

Configuration

Network ID: 1234 (configurable via AT+SETPAN)
Baud Rate: 115200
Communication: 6.8Mbps (AT+SETCFG parameter)
Range filtering: Enabled for accuracy
Refresh Rate: 10Hz (configurable via AT+SETCAP)
Max Anchors: Unlimited (tags connect to 8 closest)
Max Tags: 64 per network

Documentation

AT Command Manual - Complete AT command reference
Hardware Product Page - Official hardware documentation
Project Roadmap - Development plan for indoor positioning system

Applications

This system is designed for:

Indoor positioning in warehouses and large buildings
Asset tracking and inventory management
Navigation assistance in GPS-denied environments
WiFi signal mapping and coverage analysis
Research and development in UWB positioning
